GunNook OD ACH-505-S
GunNook OD ACH-505-S Right
GunNook OD ACH-505-S Back
GunNook OD ACH-505-S Left
GunNook ACH-505-S Ballistic Helmet – High Cut ACH/MICH 2001 MADE IN US

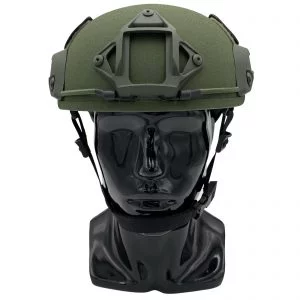

GN-505-MH-Front

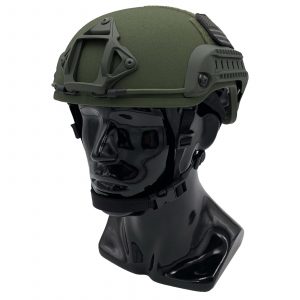

GN-505-MH-LA-Side

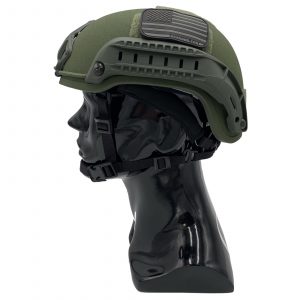

GN-505-MH-L-Side
GN-505-MH-Back

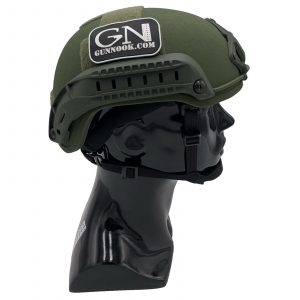

GN-505-MH-R-Side

We are proud to offer high quality ballistic helmets made right here in  the US. Regardless of your individual needs, we have the right ballistic helmet for you. With options ranging from ultra lightweigt to rifle rated helmets that far exceed the NIJ Level IIIa standards we’ve got you covered. Keep reading for more information regarding shell cuts, sizes, protection options and more, if we missed something or you still have questions please contact us.

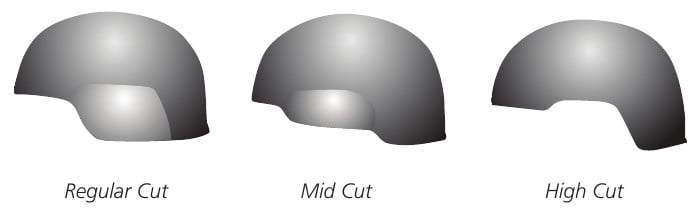

Ballistic Helmet Shell Cuts

Made in US Helmet Shell CutsThere are three shell cuts to choose from when choosing your ballistic helmet. The regular cut offers the most protective area by fully covering your ears but is the least compatible with headsets and hearing protection devices. The mid cut offers a balance while the high cut offers the greatest compatibility with communications gear.

Ballistic Helmet Shell Size

Made in US Helmet Size Chart

GunNook American Made Ballistic Helmet Models

GN-HP-200 – High Protection Ballistic Helmet

The GN-HP-200 offers NIJ level IIIA protection with additional fragmentation protection. It is used by both military and law enforcement worldwide.

GN-505 – Lightweight Advanced Combat Helmet (ACH)

This ballistic helmet was developed to replace the original ACH styles used by the U.S. military. It features the same ballistic and fragmentation protection while being lighter and is used by the U.S. Army.

GN-501 – Ultra Lightweight Ballistic Helmet

This ballistic helmet is 30% lighter than a standard ACH and is a great choice for front-line units and special forces. It offers protection against a wide spectrum of small fragments as well as handgun projectiles.

GN-LJD-AIRE – Aire Ultra Lightweight Ballistic Helmet

This revolutionary helmet is more than 40% lighter than a standard ACH while exceeding the ballistic protection of the GN-505 Lightweight ACH.

GN-600 – Rifle-Resistant, High Threat Ballistic Helmet

This specially designed ballistic helmet offers protection against not just handgun projectiles but rifle rounds as well. It does this while still being lighter than a traditional ACH thanks to the ultra lightweight UHMWPE construction. Designed for special forces, counter-terrorism units and front line troops.

Ballistic Helmet Comparison Chart

GUNNOOK, LLC Helmet Comparison Chart
Product No.Protection SeriesBallistic PerformanceShell ConstructionFragment PreformanceWeight (Large)
GN-202-EEconomy-Domestic.44 Mag @ 1340 ft/s ± 30 ft/s - NIJ IIIAAramid FibersN/A3.2 lbs
GN-HP-200High ProtectionNIJ IIIA - BFD/9mm Trauma <24mm (AR/PD 10-02)Aramid FibersV50>2200 f/s, 680 m/s, 17 gr FSP2.15 lbs
GN-LWACH-505Lightweight ACHNIJ IIIA - In accordance with AR/PD 10-02Aramid FibersU.S. Military AR/PD 10-022.15 lbs
GN-ULHC-501Ultra Lightweight High CutNIJ IIIA - BFD/9mm Trauma <24mm (AR/PD 10-02)Polyethylene Fibers+V50>2400 f/s (731 m/s) for 17gr. FPS2.4 lbs
GN-LJD-AIREAIRE-Ultra Lightweight.44 Mag @ 1340 ft/s ± 30 ft/s - NIJ IIIAUHMWPEV50>2400 f/s (731 m/s) for 17gr. FPS1.9lbs
GN-RRHT-600-SRifle Resistant High Threat7.62x39 @ 2100 FT/s - RP-002, M80 NATO (2100 fps)UHMWPEV50>3000 F/S (900 m/s) for 17 gr. FPS2.11lbs
MICH2001
GN-202-EEconomy-Domestic.44 Mag @ 1340 ft/s ± 30 ft/s - NIJ IIIAAramid FibersN/A3.2 lbs
GN-HP-200High ProtectionNIJ IIIA - BFD/9mm Trauma <24mm (AR/PD 10-02)Aramid FibersV50>2200 f/s, 680 m/s, 17 gr FSP2.15 lbs
GN-LWACH-505Lightweight ACHNIJ IIIA - In accordance with AR/PD 10-02Aramid FibersU.S. Military AR/PD 10-022.15 lbs
GN-ULHC-501Ultra Lightweight High CutNIJ IIIA - BFD/9mm Trauma <24mm (AR/PD 10-02)Polyethylene Fibers+V50>2400 f/s (731 m/s) for 17gr. FPS2.4 lbs
GN-LJD-AIREAIRE-Ultra Lightweight.44 Mag @ 1340 ft/s ± 30 ft/s - NIJ IIIAUHMWPEV50>2400 f/s (731 m/s) for 17gr. FPS1.9lbs
GN-RRHT-600-SRifle Resistant High Threat7.62x39 @ 2100 FT/s - RP-002, M80 NATO (2100 fps)UHMWPEV50>3000 F/S (900 m/s) for 17 gr. FPS2.11lbs
MICH2002
GN-202-EEconomy-Domestic.44 Mag @ 1340 ft/s ± 30 ft/s - NIJ IIIAAramid FibersN/A3.2 lbs
GN-HP-200High ProtectionNIJ IIIA - BFD/9mm Trauma <24mm (AR/PD 10-02)Aramid FibersV50>2200 f/s, 680 m/s, 17 gr FSP2.15 lbs
GN-LWACH-505Lightweight ACHNIJ IIIA - In accordance with AR/PD 10-02Aramid FibersU.S. Military AR/PD 10-022.15 lbs
GN-ULHC-501Ultra Lightweight High CutNIJ IIIA - BFD/9mm Trauma <24mm (AR/PD 10-02)Polyethylene Fibers+V50>2400 f/s (731 m/s) for 17gr. FPS2.4 lbs
GN-LJD-AIREAIRE-Ultra Lightweight.44 Mag @ 1340 ft/s ± 30 ft/s - NIJ IIIAUHMWPEV50>2400 f/s (731 m/s) for 17gr. FPS1.9lbs
GN-RRHT-600-SRifle Resistant High Threat7.62x39 @ 2100 FT/s - RP-002, M80 NATO (2100 fps)UHMWPEV50>3000 F/S (900 m/s) for 17 gr. FPS2.11lbs
MICH2000
GN-101-EEconomy-Domestic.44 Mag @ 1340 ft/s ± 30 ft/s - NIJ IIIAAramid FibersN/A3.3 lbs
GN-101-SEconomy-Domestic Superior.44 Mag @ 1340 ft/s ± 30 ft/s - NIJ IIIAAramid FibersN/A3.3 lbs
GN-HP-102-EHigh Protection PASGT.44 Mag @ 1340 ft/s ± 30 ft/s - NIJ IIIAAramid FibersV50>2130 f/s, 650 m/s, 17 gr FSP3.3 lbs
GN-HP-102-SHigh Protection PASGT -S.44 Mag @ 1340 ft/s ± 30 ft/s - NIJ IIIAAramid FibersV50>2130 f/s, 650 m/s, 17 gr FSP3.3 lbs
PASGT

Coverage Area

MICH/ACH STYLE
200 / 202 / 500 / 501 / 505 / 600 / LJD-AIRE
SIZEHIGH-CUTMID-CUTFULL-CUT
CM2IN2CM2IN2CM2IN2
SMALL / XS900354.331930366.1421000393.701
MEDIUM910358.2681000393.7011070421.260
LARGE960377.9531050413.3861125442.913
X-LARGE / XXL1090429.1341170460.6301245490.157

Approximate measurements : may vary ± 2.5%
